Mitsubishi Electric Corporation will begin sampling "25Gbps DFB lasers" on September 1. The new product is an optical transmission device applied to optical communication between a mobile communication system antenna base station and a switching center responsible for collecting communication signals transmitted by the base station for centralized control. High-speed operation (25Gbps) in a wide operating temperature range (-20°C to +85°C) and a 25Gbps compact transceiver specification (SFP28*4) by the industry's top (July 20, 2016, according to our survey) The external dimensions contribute to the speed of the next generation mobile communication system.
Note: Gbps (Giga-bitsperseconds): communication rate unit capable of transmitting gigabit digital codes per second
2DFB (DistributedFeed-Back) laser: distributed feedback laser. A diffraction grating inside the laser to extract the optical signal at a specific wavelength
New product features
1. Achieve 25Gbps high speed operation and a wide operating temperature range of -20°C to +85°C
· Through the optimization of laser diode structure, it achieves the industry's top transmission speed of 25Gbps in the wide temperature range of -20 ° C ~ +85 ° C (existing product: transmission speed 10Gbps)
· Same as existing products, the communication equipment equipped with this product does not need to be equipped with a refrigerator, and can be set outdoors
2. Maintains the same form factor as existing products and meets 25Gbps compact transceiver specifications
· Developed a high-performance package that minimizes electrical signal loss

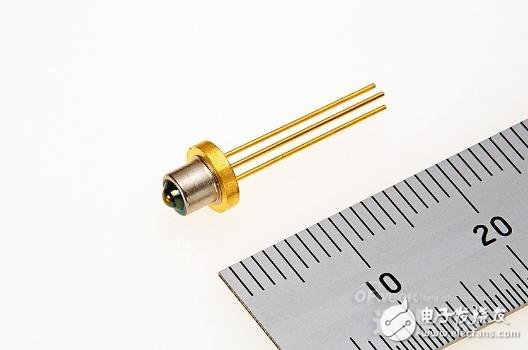

· As a non-built-in TO-CAN for the driver IC, it achieves the same external dimensions (φ5.6mm) as the existing 10Gbps DFB laser.
· Helps meet the 25Gbps high-speed operation of small transceiver specifications (SFP28) by using a simple structure of TO-CAN
Summary of samples
Start providing sample targets
The popularity of mobile terminals such as smartphones and tablets has dramatically increased data communication capacity. In order to process a large amount of communication data at high speed, a new generation mobile communication system requires a small transceiver used in a communication device to operate at a high speed (25 Gbps). However, in order to achieve this goal, since the communication device used by the antenna base station is placed outdoors, the DFB laser mounted on the transceiver needs to operate at a high speed over a wide temperature range while ensuring the size conforming to the 25 Gbps compact transceiver specification. All become issues that need to be solved.
In order to meet the above requirements, our company has begun to provide the industry's top-level high-speed operation (25Gbps) in a wide operating temperature guarantee range (-20 ° C ~ +85 ° C), and suitable for 25Gbps small transceiver specifications (SFP28) form factor Sample of the "25Gbps DFB Laser". This contributes to the speed of the next generation mobile communication system.
Main specifications
Environmental considerations
Comply with the RoHS Directive (2011/65/EU).
Production factory
Mitsubishi Electric Corporation High Frequency Optical Device Manufacturing Co., Ltd.
〒664-8641 Yidan City, Ito City, 4th Chome
