THINKPAD S5 is a very popular model recently. It has played THINKPAD P50 workstation and it is playing the whole family. Thanks to its unique THINKPAD professional model and outstanding double fan independence design, college students and designers loved it, but the pricing of this book was a bit of a kind, and it was mainly related to the capacity of the original memory.
Silver I7 8GB 128GB SSD 1T HDD version 7999, while the silver I7 4GB 1TB HDD delivery 4GB Kingston memory version 7499, direct orders during the National Day -500, coupon -500 is equal to 6,499 yuan, while the former is always higher than the latter price 1,500 yuan higher, it's a pit father's price gap. But do not think that Lenovo's pricing is unreasonable, because this version of the machine's memory is inside the fuselage is the need to remove the entire machine after all can be seen, which is undoubtedly an insurmountable right to the average consumer, you want 8G +8G becomes 16GB version, then you must buy 7999 this, and 6499 this original is a single 4GB memory, you want to add 8G + 8G memory door is not, so the surface of the two memory capacity is just a 128GB SSD The difference between the price difference to reach 1,500 yuan, this is not exactly the difference between the SSD, the real pit father is to bet you are afraid to disassemble, so you want 8G +8 G memory, then send money to come.
During the National Day, the author identified a silver THINKPAD S5 with a 4GB memory version I7 for the prostitute who had just been admitted to a fine arts college, and succeeded in using only a name card to completely dismantle the S5 and eventually replaced it with 8G+. 8G memory and dual SSD configuration. This machine 7499-500-500 = 6499 transactions.
Jingdong Delivery
Host packaging
Model identification
The silver THINKPAD is not quite used at first sight, and it has a strong sense of DELL.
Dense heat vents on the back and sides

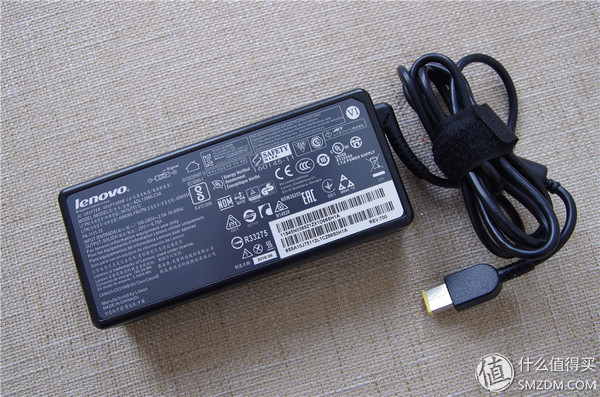

135W power adapter
Full silver metal feel
One side is HDMI, RJ45 network port, USB3.0 and audio jacks
On the other side are 2 USB3.0 jacks and a standard-size SD card slot
LENOVO traditional location LOGO
THINPAD LOGO with red dot breathing light effect
Lower the three screws of the lower cover and use a plastic name card to move along the gap to open
After opening the lower cover, it is only an empty memory slot. Many people here are stupid, and there is a memory that is deeply hidden inside the PCB. The students who bought the I7 4GB version must have had 10,000 mud horses in their hearts.
Do not care so much, because the original machine 1TB HDD with the operating system is a genuine WIN10, and comes with genuine OFFICE 365, to do this system unfortunately, directly on the previous M2 INTEL 600P 256GB system migration.
The S5 M2 slot comes with a full copper heatsink, which effectively ensures that the M2 SSD does not slow down.
The 256GB INTEL 600P uses the SMI SM2260 (SMI N00X94), PCIE3.0 x4 interface, and supports NVME. South Asia 256MB of DDR3L cache, Flash particles are 3D NANO, TLC particles from Intel and Magnesium.
After booting up M2 SSD
Install ACRONIS TURE IMAGE 2016
Do not need to register, skip registration directly, 30 days trial
Select 1TB of WD HDD Backup
I chose to back up Synology NAS on the network. Why is it not cloned directly on the M2 SSD? It is because I want to leave this genuine image, and it is convenient to restore the system later.
Make a backup.
After the backup is complete, select the image that has just been backed up on the Synology NAS and restore it to the INETL 600P 256GB.
After the recovery is complete, the 1TB HDD to INTEL 600P 256GB system migration is completed. And I left a backup on my Synology NAS in case of emergency. Following the overall replacement of the memory of the dismantling work, to dismantle the entire Taiwan S5 notebook, I still choose business card Dafa.
First off the battery, the battery's socket is tight, you need to use a business card to peel the socket along the gap
Along the sides of the battery cable outlets, the business cards can be separated by the unceasing movement of the business cards.
Remove the battery.
In fact, at this time, the 1TB HDD had already completed the sowing work, and the seeds had been collected by the group's sperm bank, so it is now optional.
HDD removal is very simple, unplug the cable can be.
WD's 1TB HDD 5400 rpm
Now loosen all screws on the back cover of the machine
Push the keyboard up
Can remove the keyboard
Reverse the keyboard, there are two cables behind
Push the black locking bolt on the cable to the top to easily remove the keyboard
Keyboard full picture
Continue to use the name card to move the clamshell underneath the keyboard. Please be careful to use the tension of the plastic business card to shake, pay attention to my posture, don't be hard
Because the C shell is a fully buckled structure, about twenty buckles hold the C shell firmly. Therefore, it is necessary to move the C shell around to loosen the buckle.
Finally, it should be noted that the final step of THINKPAD's book C shell removal is the audio jack. This jack is more prominent and difficult to remove. After loosening all the buckles, the last thing to do is to play the audio at the audio jack. The interface is separated from the C shell so that the C shell can be completely separated.
Completely separated C shell, perfect disassembly without injury
Responsible to say that the S5's cooling is still very good, double-turbo dual heat pipe, a thick one.
A thick heat pipe connects the two heat sinks of the CPU and the GPU to achieve the purpose of common heat dissipation.
Below you can see the long hidden memory slots, in order to change this with the memory you need to disassemble the entire c shell.
Samsung DDR4 2133 memory 4GB
To remove the memory is so difficult, then I will be in one step and replace it with Kingston's HYPER X DDR4 2400 8GBX2 memory. First of all, the I7 6700HQ CPU supports DDR4 2400 memory. Jingdong 2133 and 2400 with the same price, certainly bought 2400.
Kingston HYPER X DDR4 2400 8GBX2
Install memory
Because the prostitute said that the teacher required the best compatible WIN7 operating system, and INTEL 600P is not a WIN7-driven NVME SSD, it can not be installed WIN7 system can be installed on the S5 WIN7 operating system NVME hard drive is required to have WIN7 under the NVME driver Only Samsung's NVME series and Intel's own 750 and enterprise-class P3XXX series, or just use SATA hard drive to install WIN7, and 1TB HDD speed is really too slow, so replace it with Plextor M7V 512GB SSD, this SSD uses MARVELL 88SS1074 master, 768MB DDR3L South Asia cache, Toshiba 15nm enterprise-grade eTLC flash memory, and flash memory life of 2000PE.
At this point, the installation of the C shell is completed, and the C shell and the D shell can be put on. This is no difficulty, and pressing the buckles directly can be perfectly restored.
The THINKPAD logo on the A side and B side of the S5 is equipped with LED red dot effects.
The overall look and feel does have the flavor of a quasi-professional design notebook. Unfortunately, the large screen configuration at 15.6 inches is only 1080P IPS. Fortunately, the light leakage control is good.
FN+Spacebar can recall two types of keyboard backlight effects. The following inspection tests are performed.
CPU: I7 6700HQ quad-core eight-line 2.6G frequency, Turbo 3.5G
CPUZ's multi-threaded CPU test score is equivalent to 71% of I7 6700K
Kingston HYPER X DDR4 2400 8GBX2 memory perfectly runs on dual channel DDR4 2400 14 14 14 2T
INTEL HD530 and NVIDIA GTX960M 2GB DDR5 Dual Graphics
The AS SSD BENCHMARK of Plextor M7V 512GB SATA scored 1057 points. As a SATA cost-effective disk, this score is still acceptable.
In JD.com's own company, 480GB-512GB is also just a few SSDs. 512GB has 768MB cache and only M7V. Plus, MARVELL is responsible for the longevity of Toshiba Enterprise eTLC 2000PE and three years replacement. What would you choose if you choose the RMA, which combines the 480GB and 512GB capacity gaps?
INTEL 600P 256GB The NVME M2 has an SSD score of 943. As an NVME SSD, this score is not SATA. . . . . . If you are not looking for cheap, you really want to go to the SM951.
The whole machine used FURMARK and AIDA 64 FPU at the same time to bake the CPU and graphics card, baked the chicken for 10 minutes, the temperature of the graphics card and the CPU was surprisingly consistent, and both were stable at 84 degrees. It seems that a series of thick heat pipes contributed. As an entry-level art design notebook, the cooling of the THINKPAD S5 is fully qualified.
Through the above experience, the 4G version of THINPAD S5 has been successfully used as a design-friendly configuration, 16G DDR4 2400 memory has been expanded, NVME and SATA dual SSDs have been used, INTEL 600P is compatible with WIN10, Plextor M7V is compatible with WIN7, and HD530 is displayed. Single GTX960M 2GB DDR5, 15.6-inch 1080P IPS display, real use of a plastic business card to complete the perfect THINPAD S5 CD shell dismantling and perfect restore the whole machine.
