Manufacturing is a pillar industry for national development. The development of manufacturing determines the development of the country. From the perspective of reality and development, it is imperative to turn "Made in China" into "Created in China." In the industrial manufacturing product design process, CAD provides the latest symbolic labeling and standard parts library in line with national standards. Standardized and intelligent mechanical drawing design can greatly improve the drawing efficiency of designers, make the drawings fully meet the standards of enterprises, industries and countries, and quickly design better products for enterprises. The use of CAD can not only improve the design quality, but also shorten the design cycle and create good economic and social benefits. Its application is extensive, and 90% of the world's top 500 companies use it as an auxiliary design. It has become one of the important indicators to measure a country's technological modernization and industrialization modernization. With the rapid development of information technology, CAD has moved toward three-dimensional upgrade and innovation. 3D CAD has gradually become the most common means and tools for enterprises to design and innovate products, and to reflect entities and features more intuitively and accurately. Three-dimensional design and manufacturing is a leap-forward technological advancement for enterprises. It involves the whole process of design, process, procurement, manufacturing, standardization and management. It requires enterprises to make strategic decisions and plan and implement them.
Three-dimensional, information and intelligence are the inevitable choices to improve design efficiency and ensure design quality. Three-dimensional design, process and manufacturing integration are the development trend of modern manufacturing technology. Under such a development situation, how to do secondary development on the basis of CAD to complete a variety of functional integration and unified configuration. Today we will share a second development case based on Creo - a quick design system. As more and more companies have not only satisfied the simple use of Creo software, but also proposed the requirements of secondary development to enhance the competitiveness of enterprises. The rapid design system is a program designed by Creo to extend the Creo function using the Creo secondary development kit. Creo is a CAD/CAM/CAE software integration package introduced by PTC Corporation of the United States. In addition to its powerful functions such as versatility and parameterization, it also provides many secondary development interfaces, such as Program and User Defined Features (UDF). API, ProToolkit, J-Link, etc. Through the secondary development of Creo software, the software can be made more effective, improve the efficiency of enterprise product development, and shorten the design cycle.
Dongfang Boiler Co., Ltd. ("Dongguo") is a core enterprise under China Dongfang Electric Group Co., Ltd. ("Dongfang Electric"). Dongfang Electric is a large-scale enterprise contracted for R&D, design and manufacture of power generation equipment and power station projects in China. It is a state-owned key enterprise that is determined by the central government and involves the national security and the lifeline of the national economy. Inheriting the blood of the national industry and carrying forward the enterprise spirit of "seeking truth, innovation, harmony, and strength", Dongguo has made China's equipment; China's equipment, the dream of equip the world. As of December 31, 2016, a total of 326 million kilowatts of boilers have been developed and manufactured, and 186,600 tons of auxiliary equipment have been completed. The products have been distributed to 28 provinces, municipalities and autonomous regions nationwide, with a domestic market share of 30% and exported to 26 countries and regions.
Rapid design system project implementation
I. Implementation goalsDongpan uses PTC parameter design company's Creo Parametric 3.0 as a structural design tool, with the help of Towers Perrin technology to carry out custom design environment, efficiency tool deployment application, staff capacity improvement, design specification uniform, product rapid design tool custom development, to achieve Dongpan The application vision of full Creo three-dimensional design; realize the application vision of the rapid design of Dongguo products; realize the application vision of Dongpan collaborative design. And for the in-depth and extensive application of each three-dimensional software, active secondary development, the introduction of third-party for secondary development and improvement, is the enterprise to put forward in-depth requirements on the demand.
Second, the application of system results of efficiency tools1. The realization of the value of the environmental warehouse
· The 3D model of the enterprise and the 2D drawing data are greatly improved, and the high quality data is provided to the PLM;
· Ensure that all designer client Creo design environments are consistent over the long term, greatly improving maintenance and modification efficiency;
Auto-save features ensure designers reduce the risk of losing data;

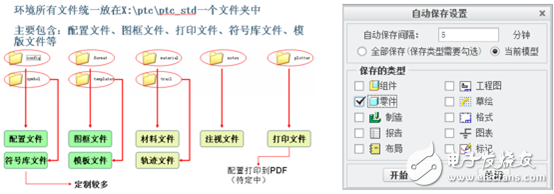

· Template library, frame library, symbol library, annotation library, etc., greatly reducing the designer's repeated work; configuration, hotkeys, interfaces, etc., unified operating habits, improve design efficiency;
